Positive and Negative Voltage Regulators

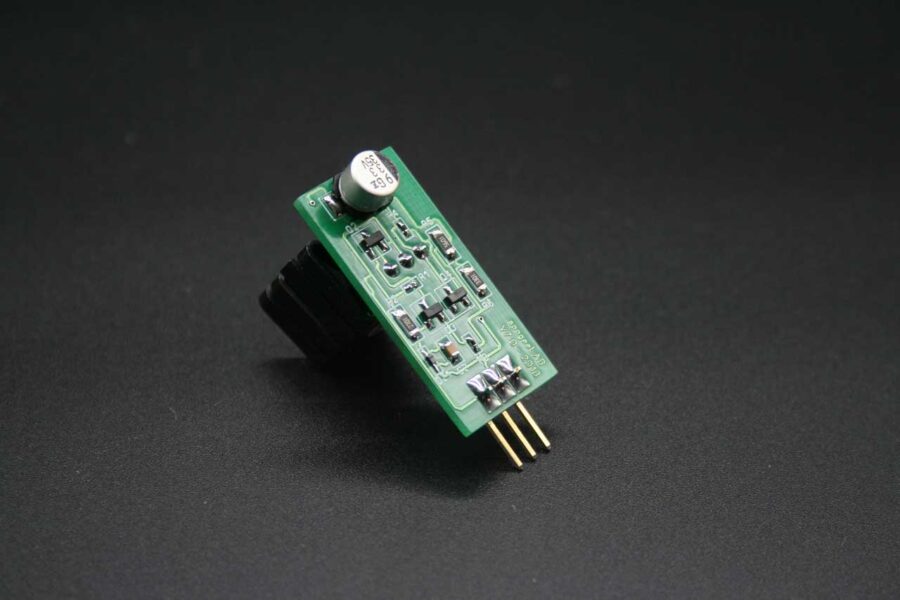

apogeeLAB, has created a family of discrete, positive voltage regulators designed to replace the monolithic regulators normally in use, such as the classic 78xx. They are available with a PCB that is extremely ergonomic and adaptable to all mechanical mounting conditions. The available Pin-Out is compatible with the standard in use and can be easily consulted in the datasheets. They supply a maximum current of 1 Ampere, but must be properly equipped with a heat sink. They can be used to replace monolithic voltage regulators in audio and power supply systems, such as CD player, DAC, USB DAC, etc., in order to improve their listening performance.
A datasheet of the positive voltage regulator is available for download.

• Positive regulator datasheet

For any information, do not hesitate to contact us, we will be happy to help you.

> See the pictures

apogeeLAB, has created a family of discrete, negative voltage regulators designed to replace the monolithic regulators normally in use, such as the classic 79xx. They are available with a PCB that is extremely ergonomic and adaptable to all mechanical mounting conditions. The available Pin-Out is compatible with the standard in use and can be easily consulted in the datasheets. They supply a maximum current of 1 Ampere, but must be properly equipped with a heat sink. They can be used to replace monolithic voltage regulators in audio and power supply systems, such as CD player, DAC, USB DAC, etc., in order to improve their listening performance.
A datasheet of the negative voltage regulator is available for download.

• Negative regulator datasheet

For any information, do not hesitate to contact us, we will be happy to help you.

> See the pictures
